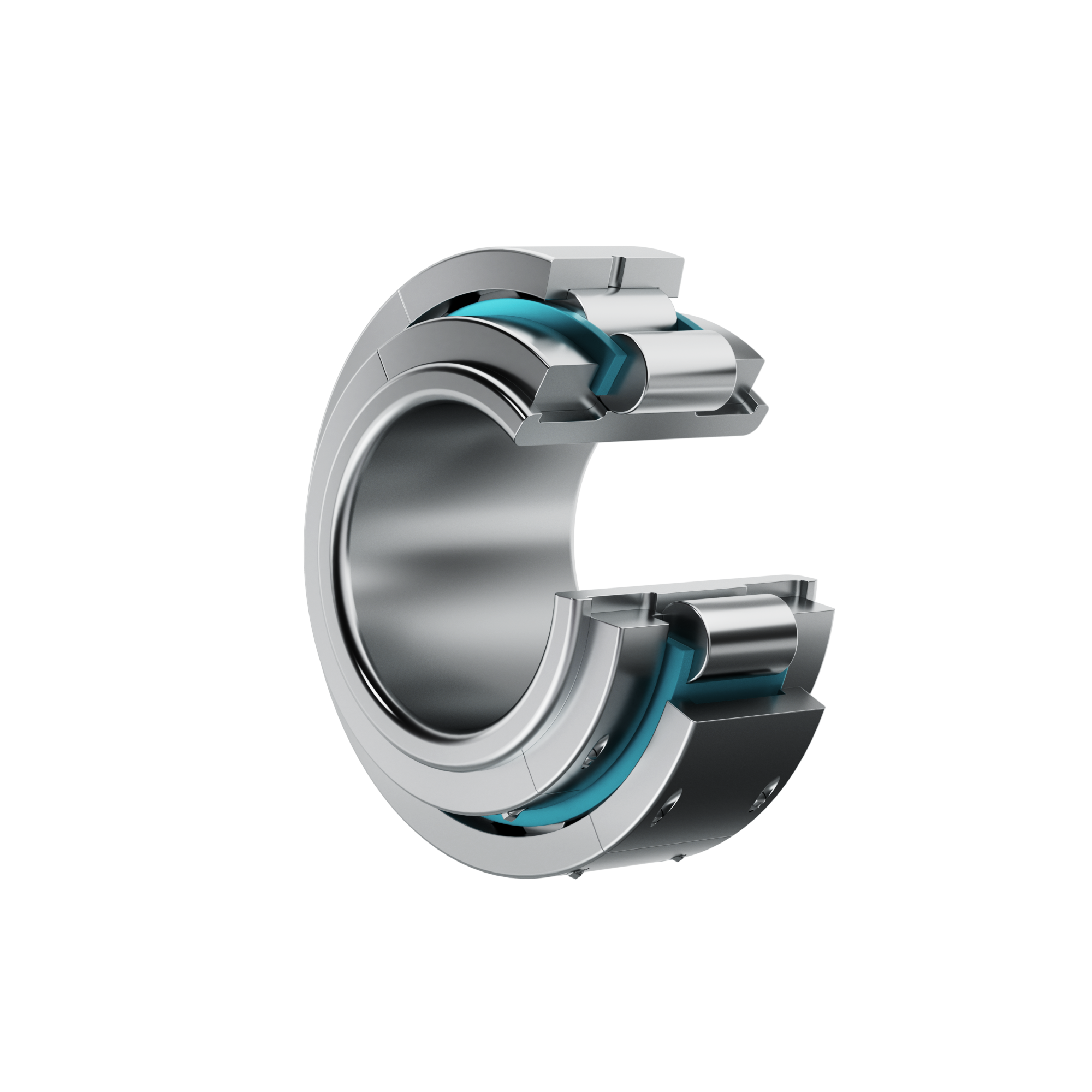

Metrische geteilte Zylinderrollenlager

Das Bild kann vom Produkt abweichen. Weitere Informationen finden Sie in den technischen Daten.

Metrische geteilte Zylinderrollenlager

Geteilte Rollenlager sind für Branchen konzipiert, in denen Ausfallzeiten von Anlagen kritisch sind. Unsere geteilten Zylinder- und Pendelrollenlager sind zur einfachen Montage und Wartung zweiteilig, ohne dass Wellen oder benachbarte Komponenten demontiert werden müssen.

Standard

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Material

Chromstahl mit hohem Kohlenstoffgehalt/Grauguss oder duktiler Gusseisen/Lagerstahl GCr15

Marke

QIBR/OEM/Neutral

Verpackung

QIBR/Standard-Industriepaket/OEM

Bohrung

35~600mm

Anwendungen

Automobilindustrie, Materialtransportgeräte, Baumaschinen, landwirtschaftliche Geräte usw.

Filter

Nr. Produkt Produktnummer Innendurchmesser (d) Außendurchmesser (D) Breite (B) Breite (B1) Breite des Innenrings (C) Wellendurchmesser und Klemmringspiel (Q)
1 01 01 B 35M 35 mm 84.14 mm 23.8 mm 23.8 mm 50.1 mm 75 mm
2 01 01 B 40M 40 mm 84.14 mm 23.8 mm 23.8 mm 50.1 mm 75 mm
3 01E 01E B 45M 45 mm 98.42 mm 25.4 mm 25.4 mm 55.7 mm 90 mm
4 01E 01E B 50M 50 mm 98.42 mm 25.4 mm 25.4 mm 55.7 mm 90 mm
5 02 02 B 50M 50 mm 107.95 mm 35.0 mm 35.0 mm 67.5 mm 98 mm
6 01E 01E B 55M 55 mm 114.30 mm 27.0 mm 27.0 mm 55.7 mm 105 mm
7 01E 01E B 60M 60 mm 114.30 mm 27.0 mm 27.0 mm 55.7 mm 105 mm
8 02 02 B 60M 60 mm 127.00 mm 38.9 mm 38.9 mm 72.3 mm 116 mm
9 01 01 E B65M 65 mm 114.30 mm 27.0 mm 27.0 mm 55.7 mm 105 mm
10 02 02 B 65M 65 mm 127.00 mm 38.9 mm 38.9 mm 72.3 mm 116 mm
11 01E 01E B 70M 70 mm 133.35 mm 31.8 mm 31.8 mm 61.2 mm 124 mm
12 02 02 B 70M 70 mm 149.22 mm 46.1 mm 46.1 mm 82.6 mm 138 mm
13 100 100 B 75M 75 mm 114.30 mm 27.0 mm 27.0 mm 48.0 mm 102 mm
14 01E 01E B 75M 75 mm 133.35 mm 31.8 mm 31.8 mm 61.2 mm 124 mm
15 02 02 B 75M 75 mm 149.22 mm 46.1 mm 46.1 mm 82.6 mm 138 mm
16 01E 01E B 80M 80 mm 152.40 mm 38.9 mm 38.9 mm 70.7 mm 142 mm
17 02 02 B 80M 80 mm 169.86 mm 48.4 mm 48.4 mm 89.7 mm 156 mm
18 100 100 B 85M 85 mm 133.35 mm 31.8 mm 31.8 mm 60.0 mm 120 mm
19 01E 01E B 85M 85 mm 152.40 mm 38.9 mm 38.9 mm 70.7 mm 142 mm
20 02 02 B 85M 85 mm 169.86 mm 48.4 mm 48.4 mm 89.7 mm 156 mm
21 01E 01E B 90M 90 mm 152.40 mm 38.9 mm 38.9 mm 70.7 mm 142 mm
22 02 02 B 90M 90 mm 169.86 mm 48.4 mm 48.4 mm 89.7 mm 156 mm
23 01E 01E B 95M 95 mm 174.62 mm 45.3 mm 45.3 mm 81.0 mm 162 mm
24 100 100 B 100M 100 mm 152.40 mm 38.9 mm 38.9 mm 65.0 mm 140 mm
25 01E 01E B 100M 100 mm 174.62 mm 45.3 mm 45.3 mm 81.0 mm 162 mm
26 02 02 B 100M 100 mm 193.68 mm 51.6 mm 51.6 mm 92.1 mm 178 mm
27 03 03 B 100M 100 mm 254.00 mm 84.2 mm 84.2 mm 136.0 mm 219 mm
28 01E 01E B 105M 105 mm 174.62 mm 45.3 mm 45.3 mm 81.0 mm 162 mm
29 02 02 B 105M 105 mm 193.68 mm 51.6 mm 51.6 mm 92.1 mm 178 mm
30 100 100 B 110M 110 mm 174.62 mm 45.3 mm 45.3 mm 80.0 mm 160 mm
31 01 01 B 110M 110 mm 203.20 mm 46.9 mm 46.9 mm 84.9 mm 182 mm
32 02 02 B 110M 110 mm 228.60 mm 57.2 mm 57.2 mm 100.0 mm 202 mm
33 03 03 B 110M 110 mm 266.70 mm 87.3 mm 87.3 mm 147.0 mm 232 mm
34 01 01 B 115M 115 mm 203.20 mm 46.9 mm 46.9 mm 84.9 mm 182 mm
35 02 02 B 115M 115 mm 228.60 mm 57.2 mm 57.2 mm 100.0 mm 202 mm
36 100 100 B 120M 120 mm 203.20 mm 46.9 mm 46.9 mm 85.0 mm 180 mm
37 01 01 B 120M 120 mm 222.25 mm 54.0 mm 54.0 mm 89.7 mm 200 mm
38 02 02 B 120M 120 mm 254.00 mm 63.5 mm 63.5 mm 114.3 mm 224 mm
39 03 03 B 120M 120 mm 266.70 mm 87.3 mm 87.3 mm 147.0 mm 232 mm
40 01 01 B 125M 125 mm 222.25 mm 54.0 mm 54.0 mm 89.7 mm 200 mm
41 02 02 B 125M 125 mm 254.00 mm 63.5 mm 63.5 mm 114.3 mm 224 mm
42 100 100 B 130M 130 mm 203.20 mm 46.9 mm 46.9 mm 85.0 mm 180 mm
43 01 01 B 130M 130 mm 222.25 mm 54.0 mm 54.0 mm 89.7 mm 200 mm
44 02 02 B 130M 130 mm 254.00 mm 63.5 mm 63.5 mm 114.3 mm 224 mm
45 03 03 B 130M 130 mm 279.40 mm 73.1 mm 84.2 mm 140.0 mm 245 mm
46 01 01 B 135M 135 mm 241.30 mm 55.6 mm 55.6 mm 98.4 mm 216 mm
47 100 100 B 140M 140 mm 222.25 mm 54.0 mm 54.0 mm 90.0 mm 195 mm
48 01 01 B 140M 140 mm 241.30 mm 55.6 mm 55.6 mm 98.4 mm 216 mm
49 02 02 B 140M 140 mm 273.05 mm 66.7 mm 66.7 mm 117.5 mm 240 mm
50 03 03 B 140M 140 mm 304.80 mm 79.4 mm 90.5 mm 147.0 mm 270 mm
51 02 02 B 145M 145 mm 273.05 mm 66.7 mm 66.7 mm 117.5 mm 240 mm
52 100 100 B 150M 150 mm 241.30 mm 55.6 mm 55.6 mm 90.0 mm 215 mm
53 01 01 B 150M 150 mm 254.00 mm 55.6 mm 55.6 mm 98.4 mm 230 mm
54 02 02 B 150M 150 mm 292.10 mm 68.3 mm 68.3 mm 123.8 mm 258 mm
55 03 03 B 150M 150 mm 330.20 mm 81.0 mm 96.9 mm 160.0 mm 292 mm
56 01 01 B 155M 155 mm 254.00 mm 55.6 mm 55.6 mm 98.4 mm 230 mm
57 02 02 B 155M 155 mm 292.10 mm 68.3 mm 68.3 mm 123.8 mm 258 mm
58 01 01 B 600-160M 160 mm 254.00 mm 55.6 mm 55.6 mm 98.4 mm 230 mm
59 01 01 B 160M 160 mm 273.05 mm 60.3 mm 60.3 mm 109.0 mm 248 mm
60 02 02 B 600-160M 160 mm 292.10 mm 68.3 mm 68.3 mm 123.8 mm 258 mm
61 02 02 B 160M 160 mm 317.50 mm 83.3 mm 83.3 mm 140.0 mm 280 mm
62 03 03 B 160M 160 mm 355.60 mm 103.2 mm 103.2 mm 171.0 mm 308 mm
63 01 01 B 608-170M 170 mm 273.05 mm 60.3 mm 60.3 mm 109.0 mm 248 mm
64 01 01 B 170M 170 mm 285.75 mm 55.5 mm 55.5 mm 109.0 mm 260 mm
65 02 02 B 170M 170 mm 317.50 mm 83.3 mm 83.3 mm 140.0 mm 280 mm
66 03 03 B 170M 170 mm 355.60 mm 103.2 mm 103.2 mm 171.0 mm 308 mm
67 01 01 B 175M 175 mm 285.75 mm 55.5 mm 55.5 mm 109.0 mm 260 mm
68 02 02 B 175M 175 mm 330.20 mm 83.3 mm 83.3 mm 140.0 mm 294 mm
69 01 01 B 180M 180 mm 285.75 mm 55.5 mm 55.5 mm 109.0 mm 260 mm
70 02 02 B 180M 180 mm 330.20 mm 83.3 mm 83.3 mm 140.0 mm 294 mm
71 03 03 B 180M 180 mm 374.65 mm 92.1 mm 108.8 mm 178.0 mm 326 mm
72 01 01 B 190M 190 mm 311.15 mm 60.3 mm 60.3 mm 109.0 mm 285 mm
73 02 02 B 190M 190 mm 368.30 mm 90.5 mm 90.5 mm 156.0 mm 328 mm
74 03 03 B 190M 190 mm 419.10 mm 97.7 mm 118.3 mm 191.0 mm 366 mm
75 01 01 B 200M 200 mm 311.15 mm 60.3 mm 60.3 mm 109.0 mm 285 mm
76 02 02 B 200M 200 mm 368.30 mm 90.5 mm 90.5 mm 156.0 mm 328 mm
77 03 03 B 200M 200 mm 419.10 mm 97.7 mm 118.3 mm 191.0 mm 366 mm
78 01 01 B 220M 220 mm 342.90 mm 63.5 mm 63.5 mm 115.0 mm 315 mm
79 02 02 B 220M 220 mm 393.70 mm 90.5 mm 90.5 mm 163.0 mm 354 mm
80 03 03 B 220M 220 mm 469.90 mm 109.6 mm 131.8 mm 212.0 mm 410 mm
81 01 01 B 230M 230 mm 342.90 mm 63.5 mm 63.5 mm 115.0 mm 315 mm
82 02 02 B 230M 230 mm 393.70 mm 90.5 mm 90.5 mm 163.0 mm 354 mm
83 01 01 B 240M 240 mm 374.65 mm 66.7 mm 66.7 mm 122.0 mm 344 mm
84 02 02 B 240M 240 mm 431.80 mm 96.8 mm 96.8 mm 170.0 mm 388 mm
85 03 03 B 240M 240 mm 482.60 mm 105.6 mm 124.6 mm 211.0 mm 430 mm
86 01 01 B 250M 250 mm 374.65 mm 66.7 mm 66.7 mm 122.0 mm 344 mm
87 02 02 B 250M 250 mm 431.80 mm 96.8 mm 96.8 mm 170.0 mm 388 mm
88 03 03 B 250M 250 mm 482.60 mm 105.6 mm 124.6 mm 211.0 mm 430 mm
89 01 01 B 1000-260M 260 mm 374.65 mm 66.7 mm 66.7 mm 122.0 mm 344 mm
90 01 01 B 260M 260 mm 406.40 mm 69.0 mm 69.0 mm 128.0 mm 375 mm
91 02 02 B 260M 260 mm 431.80 mm 96.8 mm 96.8 mm 170.0 mm 388 mm
92 03 03 B 260M 260 mm 482.60 mm 105.6 mm 124.6 mm 211.0 mm 430 mm
93 01 01 B 270M 270 mm 406.40 mm 69.0 mm 69.0 mm 128.0 mm 375 mm
94 01 01 B 275M 275 mm 406.40 mm 69.0 mm 69.0 mm 128.0 mm 375 mm
95 01 01 B 280M 280 mm 406.40 mm 69.0 mm 69.0 mm 128.0 mm 375 mm
96 02 02 B 280M 280 mm 463.55 mm 101.6 mm 101.6 mm 186.0 mm 420 mm
97 03X 03X B 280M 280 mm 520.70 mm 131.8 mm 131.8 mm 231.0 mm 462 mm
98 03E 03E B 280M 280 mm 495.30 mm 139.7 mm 139.7 mm 244.0 mm 452 mm
99 01 01 B 290M 290 mm 438.15 mm 74.6 mm 74.6 mm 143.0 mm 404 mm
100 03 03 B 290M 290 mm 558.80 mm 139.7 mm 139.7 mm 244.0 mm 496 mm
