Das Bild kann vom Produkt abweichen. Weitere Informationen finden Sie in den technischen Daten.

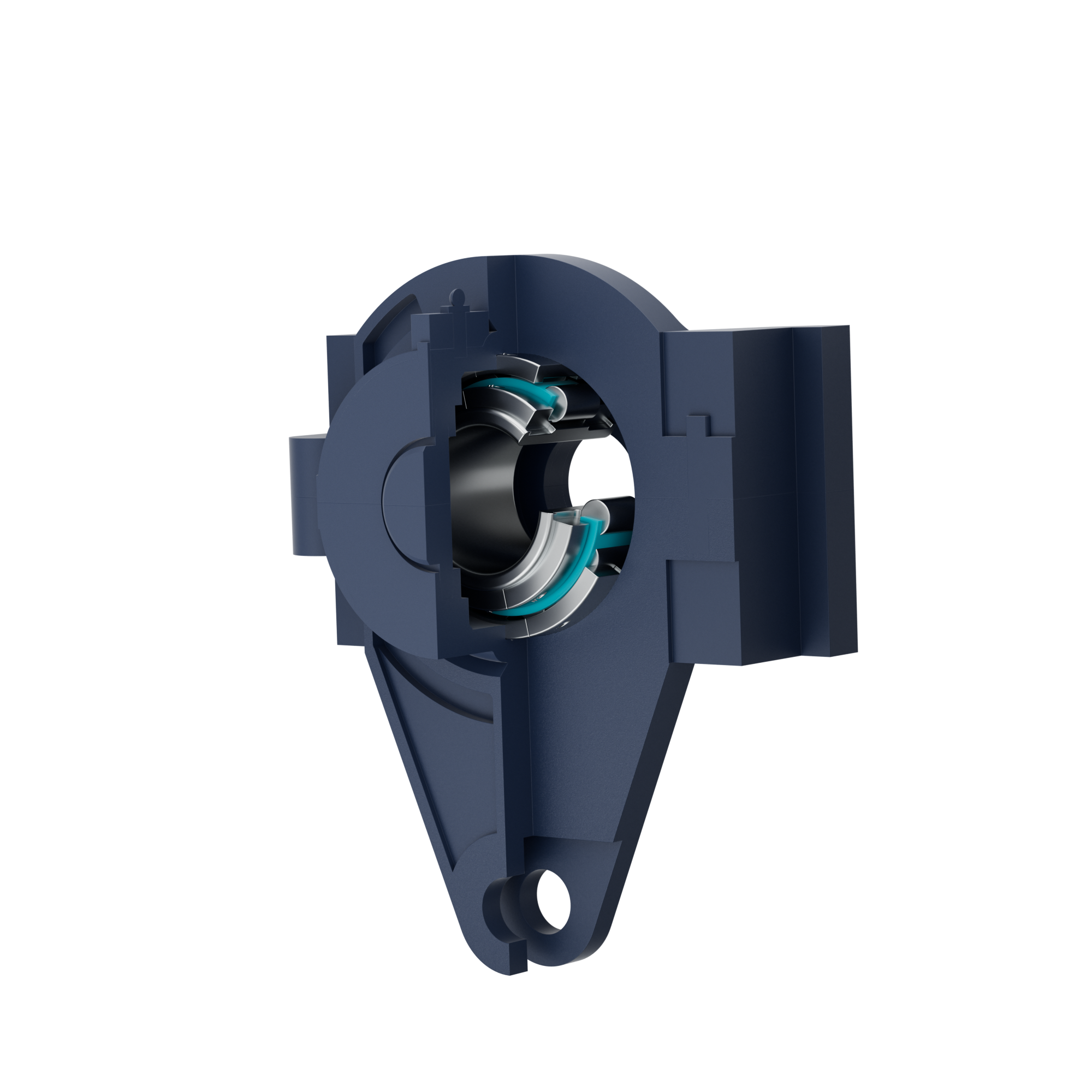

Metrische Spannlagerkopfeinheiten
Geteilte Lagereinheiten sind vormontierte Systeme, die geteilte Lager (Zylinder-/Pendelrollen) mit geteilten Gehäusen (Stehlagergehäuse) kombinieren und für eine schnelle Montage und Wartung ohne Demontage der Welle ausgelegt sind. Ideal für die Schwerindustrie, wo Ausfallzeiten kostspielig sind.
Standard
GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh
Material
Chromstahl mit hohem Kohlenstoffgehalt/Grauguss oder duktiler Gusseisen/Lagerstahl GCr15
Marke
QIBR/OEM/Neutral
Verpackung
QIBR/Standard-Industriepaket/OEM
Bohrung
40~155mm
Anwendungen
Automobilindustrie, Materialtransportgeräte, Baumaschinen, landwirtschaftliche Geräte usw.
| Nr. | Produkt | Produktnummer | Bohrung | Höhe (W) | Länge der Führungsnut (b) | Abstand zwischen der Unterseite der Führung (D) | Abstand von der Mittellinie bis zum Ende des Gehäuses (V) | Montagestufe (P) | Abstand von der Befestigungsbohrung zur Mittellinie des Gehäuses (A) | Stiftdurchmesser (X) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
|
TT01+01 BCTT 40M | 40 mm | 172 mm | 102 mm | 153 mm | 76 mm | 14 mm | 114 mm | 20 mm |
| 2 |
|
TT02+01E BCTT 45M | 45 mm | 204 mm | 114 mm | 178 mm | 88 mm | 16 mm | 128 mm | 24 mm |
| 3 |
|
TT02+01E BCTT 50M | 50 mm | 204 mm | 114 mm | 178 mm | 88 mm | 16 mm | 128 mm | 24 mm |
| 4 |
|
TT03+02 BCTT 50M | 50 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | 146 mm | 24 mm |
| 5 |
|
TT03+01E BCTT 60M | 60 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | 146 mm | 24 mm |
| 6 |
|
TT04+02 BCTT 60M | 60 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | 158 mm | 24 mm |
| 7 |
|
TT03+01E BCTT 65M | 65 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | 146 mm | 24 mm |
| 8 |
|
TT04+02 BCTT 65M | 65 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | 158 mm | 24 mm |
| 9 |
|
TT04+01E BCTT 70M | 70 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | 158 mm | 24 mm |
| 10 |
|
TT05+02 BCTT 70M | 70 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | 190 mm | 30 mm |
| 11 |
|
TT03+100 BCTT 75M | 75 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | 146 mm | 24 mm |
| 12 |
|
TT04+01E BCTT 75M | 75 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | 158 mm | 24 mm |
| 13 |
|
TT05+02 BCTT 75M | 75 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | 190 mm | 30 mm |
| 14 |
|
TT05+01E BCTT 80M | 80 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | 190 mm | 30 mm |
| 15 |
|
TT06+02 BCTT 80M | 80 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | 210 mm | 36 mm |
| 16 |
|
TT04+100 BCTT 85M | 85 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | 158 mm | 24 mm |
| 17 |
|
TT05+01E BCTT 85M | 85 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | 190 mm | 30 mm |
| 18 |
|
TT06+02 BCTT 85M | 85 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | 210 mm | 36 mm |
| 19 |
|
TT05+01E BCTT 90M | 90 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | 190 mm | 30 mm |
| 20 |
|
TT06+02 BCTT 90M | 90 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | 210 mm | 36 mm |
| 21 |
|
TT05+100 BCTT 100M | 100 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | 190 mm | 30 mm |
| 22 |
|
TT06+01E BCTT 100M | 100 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | 210 mm | 36 mm |
| 23 |
|
TT07+02 BCTT 100M | 100 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | 228 mm | 42 mm |
| 24 |
|
TT06+01E BCTT 105M | 105 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | 210 mm | 36 mm |
| 25 |
|
TT07+02 BCTT 105M | 105 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | 228 mm | 42 mm |
| 26 |
|
TT06+100 BCTT 110M | 110 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | 210 mm | 36 mm |
| 27 |
|
TT07+01 BCTT 110M | 110 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | 228 mm | 42 mm |
| 28 |
|
TT08+02 BCTT 110M | 110 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | 260 mm | 42 mm |
| 29 |
|
TT07+01 BCTT 115M | 115 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | 228 mm | 42 mm |
| 30 |
|
TT08+02 BCTT 115M | 115 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | 260 mm | 42 mm |
| 31 |
|
TT07+100 BCTT 120M | 120 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | 228 mm | 42 mm |
| 32 |
|
TT08+01 BCTT 120M | 120 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | 260 mm | 42 mm |
| 33 |
|
TT10+02 BCTT 120M | 120 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | 280 mm | 48 mm |
| 34 |
|
TT08+01 BCTT 125M | 125 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | 260 mm | 42 mm |
| 35 |
|
TT10+02 BCTT 125M | 125 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | 280 mm | 48 mm |
| 36 |
|
TT07+100 BCTT 130M | 130 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | 228 mm | 42 mm |
| 37 |
|
TT08+01 BCTT 130M | 130 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | 260 mm | 42 mm |
| 38 |
|
TT10+02 BCTT 130M | 130 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | 280 mm | 48 mm |
| 39 |
|
TT09+01 BCTT 135M | 135 mm | 438 mm | 266 mm | 400 mm | 196 mm | 25 mm | 266 mm | 42 mm |
| 40 |
|
TT30+02 BCTT 135M | 135 mm | 502 mm | 280 mm | 464 mm | 222 mm | 25 mm | 298 mm | 48 mm |
| 41 |
|
TT08+100 BCTT 140M | 140 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | 260 mm | 42 mm |
| 42 |
|
TT09+01 BCTT 140M | 140 mm | 438 mm | 266 mm | 400 mm | 196 mm | 25 mm | 266 mm | 42 mm |
| 43 |
|
TT30+02 BCTT 140M | 140 mm | 502 mm | 280 mm | 464 mm | 222 mm | 25 mm | 298 mm | 48 mm |
| 44 |
|
TT09+100 BCTT 150M | 150 mm | 438 mm | 266 mm | 400 mm | 196 mm | 25 mm | 266 mm | 42 mm |
| 45 |
|
TT10+01 BCTT 150M | 150 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | 280 mm | 48 mm |
| 46 |
|
TT31+02 BCTT 150M | 150 mm | 528 mm | 305 mm | 489 mm | 235 mm | 25 mm | 312 mm | 48 mm |
| 47 |
|
TT10+01 BCTT 155M | 155 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | 280 mm | 48 mm |
| 48 |
|
TT31+02 BCTT 155M | 155 mm | 528 mm | 305 mm | 489 mm | 235 mm | 25 mm | 312 mm | 48 mm |
| 49 |
|
TP01+01 BCTP 40M | 40 mm | 172 mm | 102 mm | 153 mm | 76 mm | 14 mm | ||
| 50 |
|
TP02+01E BCTP 45M | 45 mm | 204 mm | 114 mm | 178 mm | 88 mm | 16 mm | ||
| 51 |
|
TP02+01E BCTP 50M | 50 mm | 204 mm | 114 mm | 178 mm | 88 mm | 16 mm | ||
| 52 |
|
TP03+02 BCTP 50M | 50 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | ||
| 53 |
|
TP03+01E BCTP 60M | 60 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | ||
| 54 |
|
TP04+02 BCTP 60M | 60 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | ||
| 55 |
|
TP03+01E BCTP 65M | 65 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | ||
| 56 |
|
TP04+02 BCTP 65M | 65 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | ||
| 57 |
|
TP04+01E BCTP 70M | 70 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | ||
| 58 |
|
TP05+02 BCTP 70M | 70 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | ||
| 59 |
|
TP03+100 BCTP 75M | 75 mm | 235 mm | 128 mm | 203 mm | 102 mm | 20 mm | ||
| 60 |
|
TP04+01E BCTP 75M | 75 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | ||
| 61 |
|
TP05+02 BCTP 75M | 75 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | ||
| 62 |
|
TP05+01E BCTP 80M | 80 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | ||
| 63 |
|
TP06+02 BCTP 80M | 80 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | ||
| 64 |
|
TP04+100 BCTP 85M | 85 mm | 266 mm | 152 mm | 229 mm | 114 mm | 22 mm | ||
| 65 |
|
TP05+01E BCTP 85M | 85 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | ||
| 66 |
|
TP06+02 BCTP 85M | 85 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | ||
| 67 |
|
TP05+01E BCTP 90M | 90 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | ||
| 68 |
|
TP06+02 BCTP 90M | 90 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | ||
| 69 |
|
TP05+100 BCTP 100M | 100 mm | 318 mm | 190 mm | 280 mm | 140 mm | 22 mm | ||
| 70 |
|
TP06+01E BCTP 100M | 100 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | ||
| 71 |
|
TP07+02 BCTP 100M | 100 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | ||
| 72 |
|
TP06+01E BCTP 105M | 105 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | ||
| 73 |
|
TP07+02 BCTP 105M | 105 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | ||
| 74 |
|
TP06+100 BCTP 110M | 110 mm | 342 mm | 204 mm | 305 mm | 152 mm | 22 mm | ||
| 75 |
|
TP07+01 BCTP 110M | 110 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | ||
| 76 |
|
TP08+02 BCTP 110M | 110 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | ||
| 77 |
|
TP07+01 BCTP 115M | 115 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | ||
| 78 |
|
TP08+02 BCTP 115M | 115 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | ||
| 79 |
|
TP07+100 BCTP 120M | 120 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | ||
| 80 |
|
TP08+01 BCTP 120M | 120 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | ||
| 81 |
|
TP10+02 BCTP 120M | 120 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | ||
| 82 |
|
TP08+01 BCTP 125M | 125 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | ||
| 83 |
|
TP10+02 BCTP 125M | 125 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | ||
| 84 |
|
TP07+100 BCTP 130M | 130 mm | 382 mm | 216 mm | 343 mm | 162 mm | 22 mm | ||
| 85 |
|
TP08+01 BCTP 130M | 130 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | ||
| 86 |
|
TP10+02 BCTP 130M | 130 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | ||
| 87 |
|
TP09+01 BCTP 135M | 135 mm | 438 mm | 266 mm | 400 mm | 196 mm | 25 mm | ||
| 88 |
|
TP30+02 BCTP 135M | 135 mm | 502 mm | 280 mm | 464 mm | 222 mm | 25 mm | ||
| 89 |
|
TP08+100 BCTP 140M | 140 mm | 420 mm | 254 mm | 381 mm | 190 mm | 25 mm | ||
| 90 |
|
TP09+01 BCTP 140M | 140 mm | 438 mm | 266 mm | 400 mm | 196 mm | 25 mm | ||
| 91 |
|
TP30+02 BCTP 140M | 140 mm | 502 mm | 280 mm | 464 mm | 222 mm | 25 mm | ||
| 92 |
|
TP09+100 BCTP 150M | 150 mm | 438 mm | 266 mm | 400 mm | 196 mm | 25 mm | ||
| 93 |
|
TP10+01 BCTP 150M | 150 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | ||
| 94 |
|
TP31+02 BCTP 150M | 150 mm | 528 mm | 305 mm | 489 mm | 235 mm | 25 mm | ||
| 95 |
|
TP10+01 BCTP 155M | 155 mm | 464 mm | 266 mm | 426 mm | 204 mm | 25 mm | ||
| 96 |
|
TP31+02 BCTP 155M | 155 mm | 528 mm | 305 mm | 489 mm | 235 mm | 25 mm |
